Non-ferrous Metals

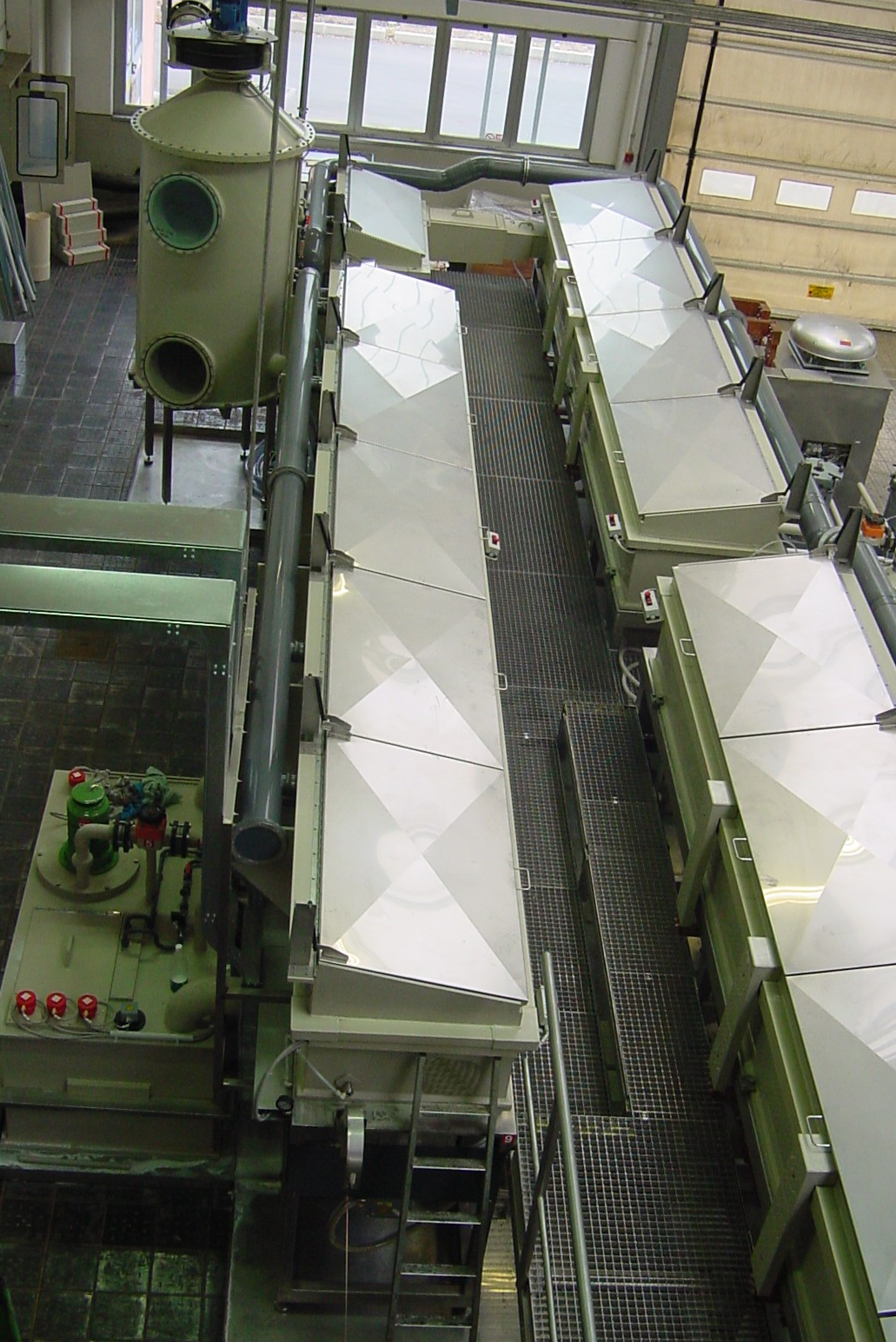

All our single wire plating plants for non-ferrous metals – Cu-wire and Cu-alloys – coating with zinc, tin, nickel

and silver are high speed plants that can operate with up to 15 m/s.


The diameter range is 1.2 – 2.6 mm for soft Cu (250 N/m2) and 1.0 – 2.0 mm for hard Cu (450 N/m2).

Depending on the coating material – according as Sn, Zn, Ni or Ag – the wire plating of non-ferrous metals

provides different benefits:



Copper wires – tinned or lead-tinned: corrosion protection, improvement of the electrical conductivity

Copper wires – silvered:  corrosion protection, improvement of the electrical conductivity, better appearance

Copper wires – nickel-plated:  corrosion protection, increase of temperature resistance



The main benefits of our wire plating plants for non-ferrous metals:



— Our scope of delivery includes all plants that are needed for the production of coated wire such as decoilers,

    wire drawing machines, annealing equipment, coilers
— The electrical operating unit that we also supply completely, guarantees  an optimal synchronization of all

    inline components
— Complete solutions with integrated environmental technologies are  available
— Less amount of rinse water and reduced consumption of chemicals because of  multi-stage cascades
— By the use of a vacuum evaporator – that’s recommended – the process becomes free of waste-water and

    thereby the operating costs are reduced
